Gradient Trend Filter 예스랭귀지로 변환 요청드립니다.
2025-05-26 16:35:43
213
글번호 191187
첨부 이미지
그림1
그림2
그림3
아래는 트레이딩뷰에서 많이 활용하고 있는 Chart Prime의 Gradient Trend Filter 수식입니다.
예스스탁에서 검토해보고자 변환 요청 드립니다.

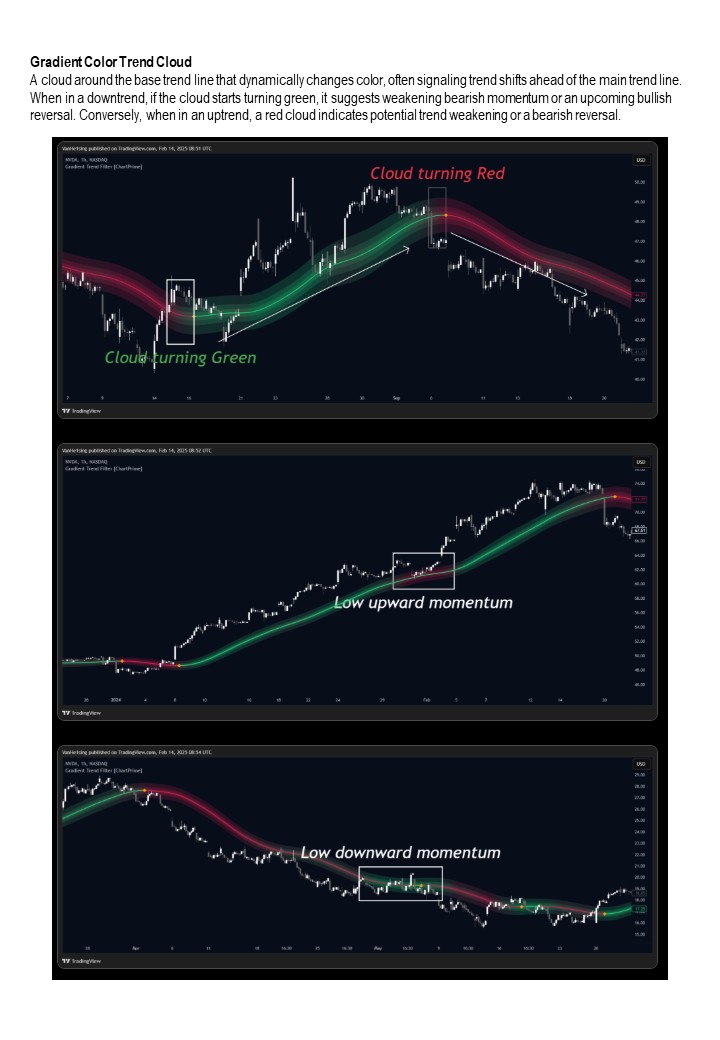

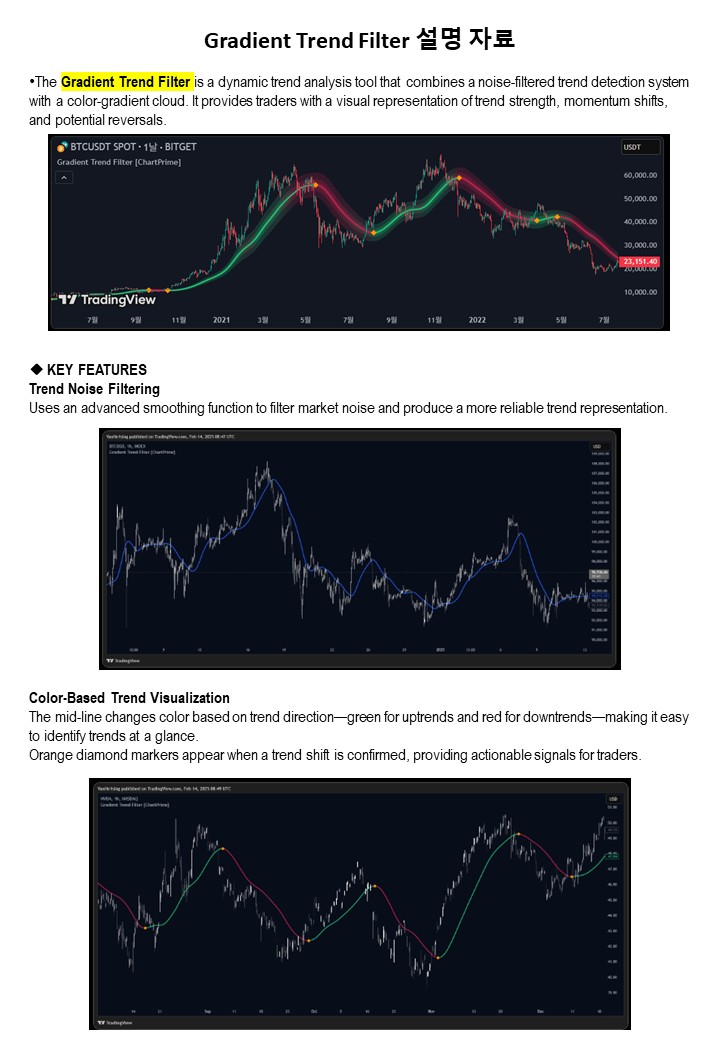

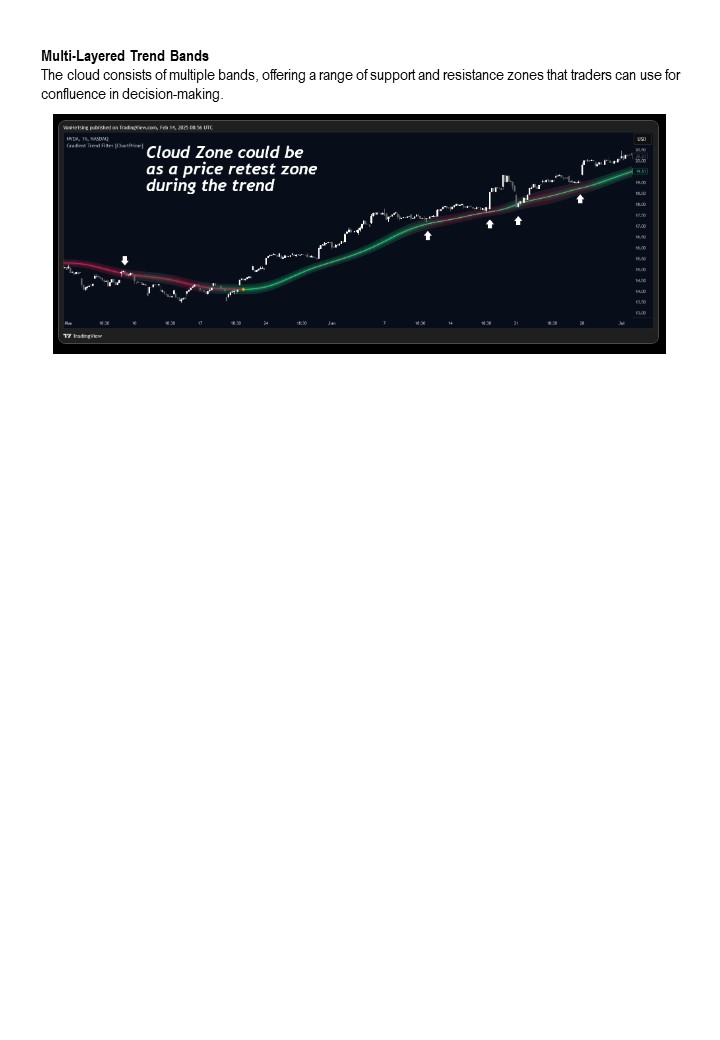

Gradient Trend Filter 설명 자료를 유첨하였습니다.
감사합니다!
// --------------------------------------------------------------------------------------------------------------------}
// 𝙄𝙉𝘿𝙄𝘾𝘼𝙏𝙊𝙍 𝘾𝘼𝙇𝘾𝙐𝙇𝘼𝙏𝙄𝙊𝙉𝙎
// --------------------------------------------------------------------------------------------------------------------{
// Noise filter function
noise_filter(src, length) =>
alpha = 2 / (length + 1)
nf_1 = 0.0
nf_2 = 0.0
nf_3 = 0.0
nf_1 := (alpha * src) + ((1 - alpha) * nz(nf_1[1]))
nf_2 := (alpha * nf_1) + ((1 - alpha) * nz(nf_2[1]))
nf_3 := (alpha * nf_2) + ((1 - alpha) * nz(nf_3[1]))
nf_3 // Final output with three-stage smoothing
// Bands function
bands(src)=>
val = noise_filter(high-low, length)
upper3 = src + val * 0.618*2.5
upper2 = src + val * 0.382*2
upper1 = src + val * 0.236*1.5
lower1 = src - val * 0.236*1.5
lower2 = src - val * 0.382*2
lower3 = src - val * 0.618*2.5
[upper3, upper2, upper1, lower1, lower2, lower3]
float base = noise_filter(src, length)
[upper3, upper2, upper1, lower1, lower2, lower3] = bands(base)
float diff = base - base[2]
// Signals
bool signal_up = ta.crossover(diff, 0) and barstate.isconfirmed
bool signal_dn = ta.crossunder(diff, 0) and barstate.isconfirmed
// --------------------------------------------------------------------------------------------------------------------}
// 𝙑𝙄𝙎𝙐𝘼𝙇𝙄𝙕𝘼𝙏𝙄𝙊𝙉
// --------------------------------------------------------------------------------------------------------------------{
color gradient_col = color.from_gradient(diff, ta.lowest(diff, 100), ta.highest(diff, 100), color2, color1)
color trend_color = color.new(gradient_col, transp)
plot(base, "Filter", linewidth = width, color = diff >= 0 ? color1 : color2)
up3 = plot(upper3, display = display.none, editable = false)
up2 = plot(upper2, display = display.none, editable = false)
up1 = plot(upper1, display = display.none, editable = false)
lw1 = plot(lower1, display = display.none, editable = false)
lw2 = plot(lower2, display = display.none, editable = false)
lw3 = plot(lower3, display = display.none, editable = false)
fill(up3, lw3, trend_color)
fill(up2, lw2, trend_color)
fill(up1, lw1, trend_color)
plotshape(signal_up ? base[1] : na, "", shape.diamond, location.absolute, offset = -1, size = size.tiny, color = color.orange)
plotshape(signal_dn ? base[1] : na, "", shape.diamond, location.absolute, offset = -1, size = size.tiny, color = color.orange)
// --------------------------------------------------------------------------------------------------------------------}
- 1. 192040_슬라이드1.JPG (0.12 MB)
- 2. 192040_슬라이드2.JPG (0.10 MB)
- 3. 슬라이드3.JPG (0.05 MB)
답변 1
예스스탁 예스스탁 답변
2025-05-27 10:29:15
안녕하세요
예스스탁입니다.
input : length(25);
input : width(2);
input : color1(Green);
input : color2(Red);
input : transp(80);
var : src(0);
var : balpha(0),bnf_1(0),bnf_2(0),bnf_3(0),base(0);
var : valpha(0),vnf_1(0),vnf_2(0),vnf_3(0),val(0);
var : diff(0),signal_up(False),signal_dn(False);
var : upper3(0),upper2(0),upper1(0),lower1(0),lower2(0),lower3(0),tx(0);
src = close;
balpha = 2 / (length + 1);
bnf_1 = 0.0;
bnf_2 = 0.0;
bnf_3 = 0.0;
bnf_1 = (balpha * src) + ((1 - balpha) * IFF(IsNan(bnf_1[1])==true,0,bnf_1[1]));
bnf_2 = (balpha * bnf_1) + ((1 - balpha) * IFF(IsNan(bnf_2[1])==true,0,bnf_2[1]));
bnf_3 = (balpha * bnf_2) + ((1 - balpha) * IFF(IsNan(bnf_3[1])==true,0,bnf_3[1]));
base = bnf_3;
valpha = 2 / (length + 1);
vnf_1 = 0.0;
vnf_2 = 0.0;
vnf_3 = 0.0;
vnf_1 = (valpha * (high-low)) + ((1 - valpha) * IFF(IsNan(vnf_1[1])==true,0,vnf_1[1]));
vnf_2 = (valpha * vnf_1) + ((1 - valpha) * IFF(IsNan(vnf_2[1])==true,0,vnf_2[1]));
vnf_3 = (valpha * vnf_2) + ((1 - valpha) * IFF(IsNan(vnf_3[1])==true,0,vnf_3[1]));
val = vnf_3;
upper3 = base + val * 0.618*2.5;
upper2 = base + val * 0.382*2;
upper1 = base + val * 0.236*1.5;
lower1 = base - val * 0.236*1.5;
lower2 = base - val * 0.382*2;
lower3 = base - val * 0.618*2.5;
diff = base - base[2];
signal_up = CrossUp(diff, 0);
signal_dn = CrossDown(diff, 0);
plot1(base, "Filter",IFf(diff >= 0 , color1 , color2));
plot2(upper3,"up3",IFf(diff >= 0 , color1 , color2));
plot3(upper2,"up2",IFf(diff >= 0 , color1 , color2));
plot4(upper1,"up1",IFf(diff >= 0 , color1 , color2));
plot5(lower1,"lw1",IFf(diff >= 0 , color1 , color2));
plot6(lower2,"lw2",IFf(diff >= 0 , color1 , color2));
plot7(lower3,"lw3",IFf(diff >= 0 , color1 , color2));
if signal_up == true Then
{
tx = Text_New_Self(sDate[1],sTime[1],base[1],"◆");
Text_SetColor(tx,Orange);
Text_SetStyle(tx,2,2);
}
if signal_dn == true Then
{
tx = Text_New_Self(sDate[1],sTime[1],base[1],"◆");
Text_SetColor(tx,Orange);
Text_SetStyle(tx,2,2);
}
즐거운 하루되세요
