수식좀 요청 드립니다.
2025-04-20 23:19:12
381
글번호 190263
첨부 이미지
그림1
ㅇ 매번 많은 도움에 고맙 습니다.
ㅇ아래 수식에서 VAR1 추세선 이러고 하셨는데....

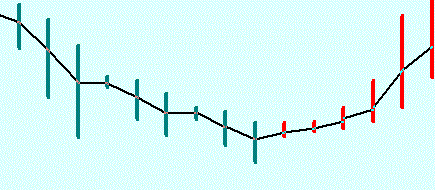

<그림> 처럼 추세의 고점 과 저점을 나누어서 중심선을 연결 할수는 있나요?
input : i_lenHARSI(10),i_smoothing(3),i_lenRSI(3);
var : i_colUp(0),i_colDown(0),i_colWick(0),i_source(0);
var : _closeRSI(0),_openRSI(0),_highRSI_raw(0),_lowRSI_raw(0);
var : _highRSI(0),_lowRSI(0),_close(0),_open(0),_high(0),_low(0);
Var : cnt(0), DownAmt1(0), UpAmt1(0), UpSum1(0), DownSum1(0), UpAvg1(0), DownAvg1(0),RSIV1(0);
Var : DownAmt2(0), UpAmt2(0), UpSum2(0), DownSum2(0), UpAvg2(0), DownAvg2(0),RSIV2(0);
var : bodyColour(0),wickColour(0);
i_colUp = red;
i_colDown = teal;
i_colWick = gray;
i_source = (o+h+l+c)/4 ;
_closeRSI = rsi(i_lenHARSI)-50;
_openRSI = IFF(IsNaN(_closeRSI[1]) == False, _closeRSI[1], _closeRSI);
If CurrentBar == 1 AND i_lenHARSI > 0 Then Begin
UpSum1 = 0;
DownSum1 = 0;
For cnt = 0 To i_lenHARSI - 1 Begin
UpAmt1 = H[cnt] - H[cnt+1];
If UpAmt1 >= 0 Then
DownAmt1 = 0;
Else Begin
DownAmt1 = -UpAmt1;
UpAmt1 = 0;
End;
UpSum1 = UpSum1 + UpAmt1;
DownSum1 = DownSum1 + DownAmt1;
End;
UpAvg1 = UpSum1 / i_lenHARSI;
DownAvg1 = DownSum1 / i_lenHARSI;
End
Else
If CurrentBar > 1 AND i_lenHARSI > 0 Then Begin
UpAmt1 = H[0] - H[1];
If UpAmt1 >= 0 Then
DownAmt1 = 0;
Else Begin
DownAmt1 = -UpAmt1;
UpAmt1 = 0;
End;
UpAvg1 = (UpAvg1[1] * (i_lenHARSI - 1) + UpAmt1) / i_lenHARSI;
DownAvg1 = (DownAvg1[1] * (i_lenHARSI - 1) + DownAmt1) / i_lenHARSI;
End;
If UpAvg1 + DownAvg1 <> 0 Then
RSIV1 = 100 * UpAvg1 / (UpAvg1 + DownAvg1);
Else
RSIV1 = 0;
If CurrentBar == 1 AND i_lenHARSI > 0 Then Begin
UpSum2 = 0;
DownSum2 = 0;
For cnt = 0 To i_lenHARSI - 1 Begin
UpAmt2 = L[cnt] - L[cnt+1];
If UpAmt2 >= 0 Then
DownAmt2 = 0;
Else Begin
DownAmt2 = -UpAmt2;
UpAmt2 = 0;
End;
UpSum2 = UpSum2 + UpAmt2;
DownSum2 = DownSum2 + DownAmt2;
End;
UpAvg2 = UpSum2 / i_lenHARSI;
DownAvg2 = DownSum2 / i_lenHARSI;
End
Else
If CurrentBar > 2 AND i_lenHARSI > 0 Then Begin
UpAmt2 = L[0] - L[1];
If UpAmt2 >= 0 Then
DownAmt2 = 0;
Else Begin
DownAmt2 = -UpAmt2;
UpAmt2 = 0;
End;
UpAvg2 = (UpAvg2[1] * (i_lenHARSI - 1) + UpAmt2) / i_lenHARSI;
DownAvg2 = (DownAvg2[1] * (i_lenHARSI - 1) + DownAmt2) / i_lenHARSI;
End;
If UpAvg2 + DownAvg2 <> 0 Then
RSIV2 = 100 * UpAvg2 / (UpAvg2 + DownAvg2);
Else
RSIV2 = 0;
_highRSI_raw = RSIV1-50;
_lowRSI_raw = RSIV2-50;
_highRSI = max(_highRSI_raw, _lowRSI_raw);
_lowRSI = min(_highRSI_raw, _lowRSI_raw);
_close = (_openRSI + _highRSI + _lowRSI + _closeRSI) / 4;
_open = iff(isnan(_open[i_smoothing]) == true, (_openRSI + _closeRSI) / 2 , (_open[1] * i_smoothing + _close[1]) / (i_smoothing + 1));
_high = max(_highRSI, max(_open, _close));
_low = min(_lowRSI, min(_open, _close));
bodyColour = iff(_close > _open , i_colUp , i_colDown);
wickColour = i_colWick;
var1 = TL_New_Self(sDate,sTime,_open,sDate,sTime,_close);
//var2 = TL_New_Self(sDate,sTime,_high,sDate,sTime,max(_open,_close));
//var3 = TL_New_Self(sDate,sTime,_Low,sDate,sTime,min(_open,_close));
TL_SetColor(var1,bodyColour);
TL_SetColor(var2,i_colWick);
TL_SetColor(var2,i_colWick);
TL_SetSize(var1,3);
TL_SetSize(var2,1);
TL_SetSize(var3,1);
if LastBarOnChart == 1 Then
Plot1(0);
ㅇ 고맙습니다. 좋은 한주 되십시요.
1
- 1. 중심선.GIF (0.01 MB)
답변 1
예스스탁 예스스탁 답변
2025-04-21 12:24:22
안녕하세요
예스스탁입니다.
input : i_lenHARSI(10),i_smoothing(3),i_lenRSI(3);
var : i_colUp(0),i_colDown(0),i_colWick(0),i_source(0);
var : _closeRSI(0),_openRSI(0),_highRSI_raw(0),_lowRSI_raw(0);
var : _highRSI(0),_lowRSI(0),_close(0),_open(0),_high(0),_low(0);
Var : cnt(0), DownAmt1(0), UpAmt1(0), UpSum1(0), DownSum1(0), UpAvg1(0), DownAvg1(0),RSIV1(0);
Var : DownAmt2(0), UpAmt2(0), UpSum2(0), DownSum2(0), UpAvg2(0), DownAvg2(0),RSIV2(0);
var : bodyColour(0),wickColour(0);
i_colUp = red;
i_colDown = teal;
i_colWick = gray;
i_source = (o+h+l+c)/4 ;
_closeRSI = rsi(i_lenHARSI)-50;
_openRSI = IFF(IsNaN(_closeRSI[1]) == False, _closeRSI[1], _closeRSI);
If CurrentBar == 1 AND i_lenHARSI > 0 Then Begin
UpSum1 = 0;
DownSum1 = 0;
For cnt = 0 To i_lenHARSI - 1 Begin
UpAmt1 = H[cnt] - H[cnt+1];
If UpAmt1 >= 0 Then
DownAmt1 = 0;
Else Begin
DownAmt1 = -UpAmt1;
UpAmt1 = 0;
End;
UpSum1 = UpSum1 + UpAmt1;
DownSum1 = DownSum1 + DownAmt1;
End;
UpAvg1 = UpSum1 / i_lenHARSI;
DownAvg1 = DownSum1 / i_lenHARSI;
End
Else
If CurrentBar > 1 AND i_lenHARSI > 0 Then Begin
UpAmt1 = H[0] - H[1];
If UpAmt1 >= 0 Then
DownAmt1 = 0;
Else Begin
DownAmt1 = -UpAmt1;
UpAmt1 = 0;
End;
UpAvg1 = (UpAvg1[1] * (i_lenHARSI - 1) + UpAmt1) / i_lenHARSI;
DownAvg1 = (DownAvg1[1] * (i_lenHARSI - 1) + DownAmt1) / i_lenHARSI;
End;
If UpAvg1 + DownAvg1 <> 0 Then
RSIV1 = 100 * UpAvg1 / (UpAvg1 + DownAvg1);
Else
RSIV1 = 0;
If CurrentBar == 1 AND i_lenHARSI > 0 Then Begin
UpSum2 = 0;
DownSum2 = 0;
For cnt = 0 To i_lenHARSI - 1 Begin
UpAmt2 = L[cnt] - L[cnt+1];
If UpAmt2 >= 0 Then
DownAmt2 = 0;
Else Begin
DownAmt2 = -UpAmt2;
UpAmt2 = 0;
End;
UpSum2 = UpSum2 + UpAmt2;
DownSum2 = DownSum2 + DownAmt2;
End;
UpAvg2 = UpSum2 / i_lenHARSI;
DownAvg2 = DownSum2 / i_lenHARSI;
End
Else
If CurrentBar > 2 AND i_lenHARSI > 0 Then Begin
UpAmt2 = L[0] - L[1];
If UpAmt2 >= 0 Then
DownAmt2 = 0;
Else Begin
DownAmt2 = -UpAmt2;
UpAmt2 = 0;
End;
UpAvg2 = (UpAvg2[1] * (i_lenHARSI - 1) + UpAmt2) / i_lenHARSI;
DownAvg2 = (DownAvg2[1] * (i_lenHARSI - 1) + DownAmt2) / i_lenHARSI;
End;
If UpAvg2 + DownAvg2 <> 0 Then
RSIV2 = 100 * UpAvg2 / (UpAvg2 + DownAvg2);
Else
RSIV2 = 0;
_highRSI_raw = RSIV1-50;
_lowRSI_raw = RSIV2-50;
_highRSI = max(_highRSI_raw, _lowRSI_raw);
_lowRSI = min(_highRSI_raw, _lowRSI_raw);
_close = (_openRSI + _highRSI + _lowRSI + _closeRSI) / 4;
_open = iff(isnan(_open[i_smoothing]) == true, (_openRSI + _closeRSI) / 2 , (_open[1] * i_smoothing + _close[1]) / (i_smoothing + 1));
_high = max(_highRSI, max(_open, _close));
_low = min(_lowRSI, min(_open, _close));
bodyColour = iff(_close > _open , i_colUp , i_colDown);
wickColour = i_colWick;
var1 = TL_New_Self(sDate,sTime,_open,sDate,sTime,_close);
//var2 = TL_New_Self(sDate,sTime,_high,sDate,sTime,max(_open,_close));
//var3 = TL_New_Self(sDate,sTime,_Low,sDate,sTime,min(_open,_close));
TL_SetColor(var1,bodyColour);
TL_SetColor(var2,i_colWick);
TL_SetColor(var2,i_colWick);
TL_SetSize(var1,3);
TL_SetSize(var2,1);
TL_SetSize(var3,1);
var11 = TL_New_Self(sDate[1],sTime[1],(_high[1]+_low[1])/2,sDate,sTime,(_high+_low)/2);
TL_SetColor(var11,Black);
TL_SetSize(var11,0);
if LastBarOnChart == 1 Then
Plot1(0);
즐거운 하루되세요
> 요타 님이 쓴 글입니다.
> 제목 : 수식좀 요청 드립니다.
> ㅇ 매번 많은 도움에 고맙 습니다.
ㅇ아래 수식에서 VAR1 추세선 이러고 하셨는데....
<그림> 처럼 추세의 고점 과 저점을 나누어서 중심선을 연결 할수는 있나요?
input : i_lenHARSI(10),i_smoothing(3),i_lenRSI(3);
var : i_colUp(0),i_colDown(0),i_colWick(0),i_source(0);
