수정좀요청 드립니다.
2025-02-19 10:41:53
366
글번호 188313
첨부 이미지
그림1
* 좋은 하루 되십시요

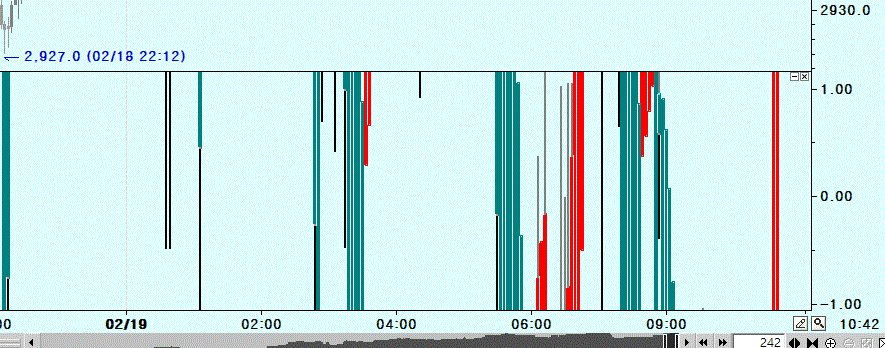

* 아래 수식 실행 하면 사진 처럼나오는데 제가 뭘 잘못 한거죠?
지도좀 부탁 드립니다,
## 아래 수식
input : i_lenHARSI(14),i_smoothing(7),i_lenRSI(7);
var : i_colUp(0),i_colDown(0),i_colWick(0),i_source(0);
var : _closeRSI(0),_openRSI(0),_highRSI_raw(0),_lowRSI_raw(0);
var : _highRSI(0),_lowRSI(0),_close(0),_open(0),_high(0),_low(0);
Var : cnt(0), DownAmt1(0), UpAmt1(0), UpSum1(0), DownSum1(0), UpAvg1(0), DownAvg1(0),RSIV1(0);
Var : DownAmt2(0), UpAmt2(0), UpSum2(0), DownSum2(0), UpAvg2(0), DownAvg2(0),RSIV2(0);
var : bodyColour(0),wickColour(0);
i_colUp = red;
i_colDown = teal;
i_colWick = gray;
i_source = (o+h+l+c)/4;
_closeRSI = rsi(i_lenHARSI)-50;
_openRSI = IFF(IsNaN(_closeRSI[1]) == False, _closeRSI[1], _closeRSI);
If CurrentBar == 1 AND i_lenHARSI > 0 Then Begin
UpSum1 = 0;
DownSum1 = 0;
For cnt = 0 To i_lenHARSI - 1 Begin
UpAmt1 = H[cnt] - H[cnt+1];
If UpAmt1 >= 0 Then
DownAmt1 = 0;
Else Begin
DownAmt1 = -UpAmt1;
UpAmt1 = 0;
End;
UpSum1 = UpSum1 + UpAmt1;
DownSum1 = DownSum1 + DownAmt1;
End;
UpAvg1 = UpSum1 / i_lenHARSI;
DownAvg1 = DownSum1 / i_lenHARSI;
End
Else
If CurrentBar > 1 AND i_lenHARSI > 0 Then Begin
UpAmt1 = H[0] - H[1];
If UpAmt1 >= 0 Then
DownAmt1 = 0;
Else Begin
DownAmt1 = -UpAmt1;
UpAmt1 = 0;
End;
UpAvg1 = (UpAvg1[1] * (i_lenHARSI - 1) + UpAmt1) / i_lenHARSI;
DownAvg1 = (DownAvg1[1] * (i_lenHARSI - 1) + DownAmt1) / i_lenHARSI;
End;
If UpAvg1 + DownAvg1 <> 0 Then
RSIV1 = 100 * UpAvg1 / (UpAvg1 + DownAvg1);
Else
RSIV1 = 0;
If CurrentBar == 1 AND i_lenHARSI > 0 Then Begin
UpSum2 = 0;
DownSum2 = 0;
For cnt = 0 To i_lenHARSI - 1 Begin
UpAmt2 = L[cnt] - L[cnt+1];
If UpAmt2 >= 0 Then
DownAmt2 = 0;
Else Begin
DownAmt2 = -UpAmt2;
UpAmt2 = 0;
End;
UpSum2 = UpSum2 + UpAmt2;
DownSum2 = DownSum2 + DownAmt2;
End;
UpAvg2 = UpSum2 / i_lenHARSI;
DownAvg2 = DownSum2 / i_lenHARSI;
End
Else
If CurrentBar > 2 AND i_lenHARSI > 0 Then Begin
UpAmt2 = L[0] - L[1];
If UpAmt2 >= 0 Then
DownAmt2 = 0;
Else Begin
DownAmt2 = -UpAmt2;
UpAmt2 = 0;
End;
UpAvg2 = (UpAvg2[1] * (i_lenHARSI - 1) + UpAmt2) / i_lenHARSI;
DownAvg2 = (DownAvg2[1] * (i_lenHARSI - 1) + DownAmt2) / i_lenHARSI;
End;
If UpAvg2 + DownAvg2 <> 0 Then
RSIV2 = 100 * UpAvg2 / (UpAvg2 + DownAvg2);
Else
RSIV2 = 0;
_highRSI_raw = RSIV1-50;
_lowRSI_raw = RSIV2-50;
_highRSI = max(_highRSI_raw, _lowRSI_raw);
_lowRSI = min(_highRSI_raw, _lowRSI_raw);
_close = (_openRSI + _highRSI + _lowRSI + _closeRSI) / 4;
_open = iff(isnan(_open[i_smoothing]) == true, (_openRSI + _closeRSI) / 2 , (_open[1] * i_smoothing + _close[1]) / (i_smoothing + 1));
_high = max(_highRSI, max(_open, _close));
_low = min(_lowRSI, min(_open, _close));
bodyColour = iff(_close > _open , i_colUp , i_colDown);
wickColour = i_colWick;
var1 = TL_New_Self(sDate,sTime,_open,sDate,sTime,_close);
var2 = TL_New_Self(sDate,sTime,_high,sDate,sTime,max(_open,_close));
var3 = TL_New_Self(sDate,sTime,_Low,sDate,sTime,min(_open,_close));
TL_SetColor(var1,bodyColour);
TL_SetColor(var2,i_colWick);
TL_SetColor(var2,i_colWick);
TL_SetSize(var1,3);
TL_SetSize(var2,1);
TL_SetSize(var3,1);
고맙습니다.
.

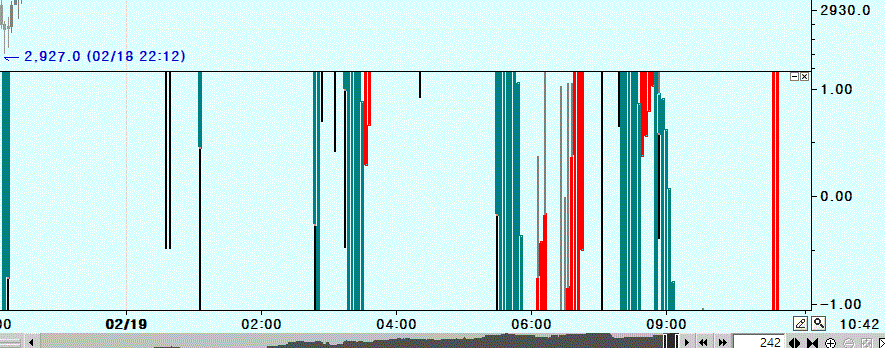

- 1. 질문3.GIF (0.05 MB)
답변 1
예스스탁 예스스탁 답변
2025-02-19 14:24:55
안녕하세요
예스스탁입니다.
지표는 차트에 적용되면 출력되는 plot값으로 Y축이 자동스케일이 됩니다.
plot으로 출력되는 내용이 없어나 plot으로 출력해도
추세선이 해당 스케일보다 크면 첨부하신 그림과 같이 나타나게 됩니다.
아래와 같이 마지막봉에만 0값 출력하게 해서 적용해 보시기 거나
지표속성창의 Y축표시탭에서 Y축최대/최소를 사용자정의로 지정해서
적당한 최대값과 최소값을 주셔야 합니다.
input : i_lenHARSI(14),i_smoothing(7),i_lenRSI(7);
var : i_colUp(0),i_colDown(0),i_colWick(0),i_source(0);
var : _closeRSI(0),_openRSI(0),_highRSI_raw(0),_lowRSI_raw(0);
var : _highRSI(0),_lowRSI(0),_close(0),_open(0),_high(0),_low(0);
Var : cnt(0), DownAmt1(0), UpAmt1(0), UpSum1(0), DownSum1(0), UpAvg1(0), DownAvg1(0),RSIV1(0);
Var : DownAmt2(0), UpAmt2(0), UpSum2(0), DownSum2(0), UpAvg2(0), DownAvg2(0),RSIV2(0);
var : bodyColour(0),wickColour(0);
i_colUp = red;
i_colDown = teal;
i_colWick = gray;
i_source = (o+h+l+c)/4;
_closeRSI = rsi(i_lenHARSI)-50;
_openRSI = IFF(IsNaN(_closeRSI[1]) == False, _closeRSI[1], _closeRSI);
If CurrentBar == 1 AND i_lenHARSI > 0 Then Begin
UpSum1 = 0;
DownSum1 = 0;
For cnt = 0 To i_lenHARSI - 1 Begin
UpAmt1 = H[cnt] - H[cnt+1];
If UpAmt1 >= 0 Then
DownAmt1 = 0;
Else Begin
DownAmt1 = -UpAmt1;
UpAmt1 = 0;
End;
UpSum1 = UpSum1 + UpAmt1;
DownSum1 = DownSum1 + DownAmt1;
End;
UpAvg1 = UpSum1 / i_lenHARSI;
DownAvg1 = DownSum1 / i_lenHARSI;
End
Else
If CurrentBar > 1 AND i_lenHARSI > 0 Then Begin
UpAmt1 = H[0] - H[1];
If UpAmt1 >= 0 Then
DownAmt1 = 0;
Else Begin
DownAmt1 = -UpAmt1;
UpAmt1 = 0;
End;
UpAvg1 = (UpAvg1[1] * (i_lenHARSI - 1) + UpAmt1) / i_lenHARSI;
DownAvg1 = (DownAvg1[1] * (i_lenHARSI - 1) + DownAmt1) / i_lenHARSI;
End;
If UpAvg1 + DownAvg1 <> 0 Then
RSIV1 = 100 * UpAvg1 / (UpAvg1 + DownAvg1);
Else
RSIV1 = 0;
If CurrentBar == 1 AND i_lenHARSI > 0 Then Begin
UpSum2 = 0;
DownSum2 = 0;
For cnt = 0 To i_lenHARSI - 1 Begin
UpAmt2 = L[cnt] - L[cnt+1];
If UpAmt2 >= 0 Then
DownAmt2 = 0;
Else Begin
DownAmt2 = -UpAmt2;
UpAmt2 = 0;
End;
UpSum2 = UpSum2 + UpAmt2;
DownSum2 = DownSum2 + DownAmt2;
End;
UpAvg2 = UpSum2 / i_lenHARSI;
DownAvg2 = DownSum2 / i_lenHARSI;
End
Else
If CurrentBar > 2 AND i_lenHARSI > 0 Then Begin
UpAmt2 = L[0] - L[1];
If UpAmt2 >= 0 Then
DownAmt2 = 0;
Else Begin
DownAmt2 = -UpAmt2;
UpAmt2 = 0;
End;
UpAvg2 = (UpAvg2[1] * (i_lenHARSI - 1) + UpAmt2) / i_lenHARSI;
DownAvg2 = (DownAvg2[1] * (i_lenHARSI - 1) + DownAmt2) / i_lenHARSI;
End;
If UpAvg2 + DownAvg2 <> 0 Then
RSIV2 = 100 * UpAvg2 / (UpAvg2 + DownAvg2);
Else
RSIV2 = 0;
_highRSI_raw = RSIV1-50;
_lowRSI_raw = RSIV2-50;
_highRSI = max(_highRSI_raw, _lowRSI_raw);
_lowRSI = min(_highRSI_raw, _lowRSI_raw);
_close = (_openRSI + _highRSI + _lowRSI + _closeRSI) / 4;
_open = iff(isnan(_open[i_smoothing]) == true, (_openRSI + _closeRSI) / 2 , (_open[1] * i_smoothing + _close[1]) / (i_smoothing + 1));
_high = max(_highRSI, max(_open, _close));
_low = min(_lowRSI, min(_open, _close));
bodyColour = iff(_close > _open , i_colUp , i_colDown);
wickColour = i_colWick;
var1 = TL_New_Self(sDate,sTime,_open,sDate,sTime,_close);
var2 = TL_New_Self(sDate,sTime,_high,sDate,sTime,max(_open,_close));
var3 = TL_New_Self(sDate,sTime,_Low,sDate,sTime,min(_open,_close));
TL_SetColor(var1,bodyColour);
TL_SetColor(var2,i_colWick);
TL_SetColor(var2,i_colWick);
TL_SetSize(var1,3);
TL_SetSize(var2,1);
TL_SetSize(var3,1);
if LastBarOnChart == 1 Then
Plot1(0);
즐거운 하루되세요
> 요타 님이 쓴 글입니다.
> 제목 : 수정좀요청 드립니다.
> * 좋은 하루 되십시요
* 아래 수식 실행 하면 사진 처럼나오는데 제가 뭘 잘못 한거죠?
지도좀 부탁 드립니다,
