수고하십니다
2024-11-14 01:32:56
864
글번호 185246

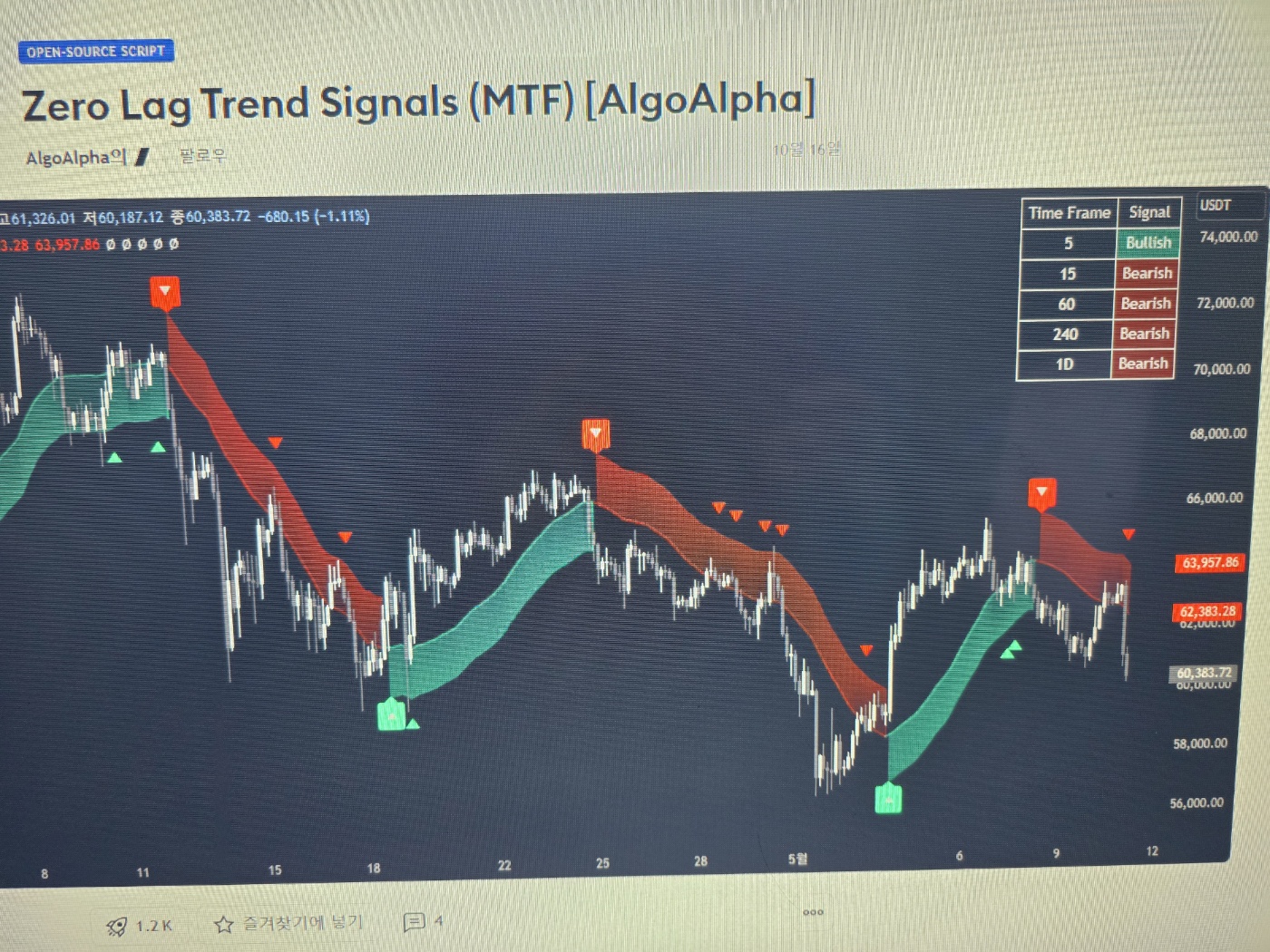

첨부 이미지
그림1
항상 노고에 감사드립니다
변환 부탁드립니다
타임이 불가능하면 선과신호만 부탁드립니다
indicator("Zero Lag Trend Signals (MTF) [AlgoAlpha]", shorttitle="AlgoAlpha - 0️⃣Zero Lag Signals", overlay=true)
length = input.int(70, "Length", tooltip = "The Look-Back window for the Zero-Lag EMA calculations", group = "Main Calculations")
mult = input.float(1.2, "Band Multiplier", tooltip = "This value controls the thickness of the bands, a larger value makes the indicato less noisy", group = "Main Calculations")
t1 = input.timeframe("5", "Time frame 1", group = "Extra Timeframes")
t2 = input.timeframe("15", "Time frame 2", group = "Extra Timeframes")
t3 = input.timeframe("60", "Time frame 3", group = "Extra Timeframes")
t4 = input.timeframe("240", "Time frame 4", group = "Extra Timeframes")
t5 = input.timeframe("1D", "Time frame 5", group = "Extra Timeframes")
green = input.color(#00ffbb, "Bullish Color", group = "Appearance")
red = input.color(#ff1100, "Bearish Color", group = "Appearance")
src = close
lag = math.floor((length - 1) / 2)
zlema = ta.ema(src + (src - src[lag]), length)
volatility = ta.highest(ta.atr(length), length*3) * mult
var trend = 0
if ta.crossover(close, zlema+volatility)
trend := 1
if ta.crossunder(close, zlema-volatility)
trend := -1
zlemaColor = trend == 1 ? color.new(green, 70) : color.new(red, 70)
m = plot(zlema, title="Zero Lag Basis", linewidth=2, color=zlemaColor)
upper = plot(trend == -1 ? zlema+volatility : na, style = plot.style_linebr, color = color.new(red, 90), title = "Upper Deviation Band")
lower = plot(trend == 1 ? zlema-volatility : na, style = plot.style_linebr, color = color.new(green, 90), title = "Lower Deviation Band")
fill(m, upper, (open + close) / 2, zlema+volatility, color.new(red, 90), color.new(red, 70))
fill(m, lower, (open + close) / 2, zlema-volatility, color.new(green, 90), color.new(green, 70))
plotshape(ta.crossunder(trend, 0) ? zlema+volatility : na, "Bearish Trend", shape.labeldown, location.absolute, red, text = "▼", textcolor = chart.fg_color, size = size.small)
plotshape(ta.crossover(trend, 0) ? zlema-volatility : na, "Bullish Trend", shape.labelup, location.absolute, green, text = "▲", textcolor = chart.fg_color, size = size.small)
plotchar(ta.crossover(close, zlema) and trend == 1 and trend[1] == 1 ? zlema-volatility*1.5 : na, "Bullish Entry", "▲", location.absolute, green, size = size.tiny)
plotchar(ta.crossunder(close, zlema) and trend == -1 and trend[1] == -1 ? zlema+volatility*1.5 : na, "Bearish Entry", "▼", location.absolute, red, size = size.tiny)
s1 = request.security(syminfo.tickerid, t1, trend)
s2 = request.security(syminfo.tickerid, t2, trend)
s3 = request.security(syminfo.tickerid, t3, trend)
s4 = request.security(syminfo.tickerid, t4, trend)
s5 = request.security(syminfo.tickerid, t5, trend)
s1a = s1 == 1 ? "Bullish" : "Bearish"
s2a = s2 == 1 ? "Bullish" : "Bearish"
s3a = s3 == 1 ? "Bullish" : "Bearish"
s4a = s4 == 1 ? "Bullish" : "Bearish"
s5a = s5 == 1 ? "Bullish" : "Bearish"
if barstate.islast
var data_table = table.new(position=position.top_right, columns=2, rows=6, bgcolor=chart.bg_color, border_width=1, border_color=chart.fg_color, frame_color=chart.fg_color, frame_width=1)
table.cell(data_table, text_halign=text.align_center, column=0, row=0, text="Time Frame", text_color=chart.fg_color)
table.cell(data_table, text_halign=text.align_center, column=1, row=0, text="Signal", text_color=chart.fg_color)
table.cell(data_table, text_halign=text.align_center, column=0, row=1, text=t1, text_color=chart.fg_color)
table.cell(data_table, text_halign=text.align_center, column=1, row=1, text=s1a, text_color=chart.fg_color, bgcolor=s1a == "Bullish" ? color.new(green, 70) : color.new(red, 70))
table.cell(data_table, text_halign=text.align_center, column=0, row=2, text=t2, text_color=chart.fg_color)
table.cell(data_table, text_halign=text.align_center, column=1, row=2, text=s2a, text_color=chart.fg_color, bgcolor=s2a == "Bullish" ? color.new(green, 70) : color.new(red, 70))
table.cell(data_table, text_halign=text.align_center, column=0, row=3, text=t3, text_color=chart.fg_color)
table.cell(data_table, text_halign=text.align_center, column=1, row=3, text=s3a, text_color=chart.fg_color, bgcolor=s3a == "Bullish" ? color.new(green, 70) : color.new(red, 70))
table.cell(data_table, text_halign=text.align_center, column=0, row=4, text=t4, text_color=chart.fg_color)
table.cell(data_table, text_halign=text.align_center, column=1, row=4, text=s4a, text_color=chart.fg_color, bgcolor=s4a == "Bullish" ? color.new(green, 70) : color.new(red, 70))
table.cell(data_table, text_halign=text.align_center, column=0, row=5, text=t5, text_color=chart.fg_color)
table.cell(data_table, text_halign=text.align_center, column=1, row=5, text=s5a, text_color=chart.fg_color, bgcolor=s5a == "Bullish" ? color.new(green, 70) : color.new(red, 70))
/////////////////////////////////////////ALERTS
alertcondition(ta.crossover(trend, 0), "Bullish Trend")
alertcondition(ta.crossunder(trend, 0), "Bearish Trend")
alertcondition(ta.cross(trend, 0), "(Bullish or Bearish) Trend")
alertcondition(ta.crossover(s1, 0), "Bullish Trend Time Frame 1")
alertcondition(ta.crossunder(s1, 0), "Bearish Trend Time Frame 1")
alertcondition(ta.cross(s1, 0), "(Bullish or Bearish) Trend Time Frame 1")
alertcondition(ta.crossover(s2, 0), "Bullish Trend Time Frame 2")
alertcondition(ta.crossunder(s2, 0), "Bearish Trend Time Frame 2")
alertcondition(ta.cross(s2, 0), "(Bullish or Bearish) Trend Time Frame 2")
alertcondition(ta.crossover(s3, 0), "Bullish Trend Time Frame 3")
alertcondition(ta.crossunder(s3, 0), "Bearish Trend Time Frame 3")
alertcondition(ta.cross(s3, 0), "(Bullish or Bearish) Trend Time Frame 3")
alertcondition(ta.crossover(s4, 0), "Bullish Trend Time Frame 4")
alertcondition(ta.crossunder(s4, 0), "Bearish Trend Time Frame 4")
alertcondition(ta.cross(s4, 0), "(Bullish or Bearish) Trend Time Frame 4")
alertcondition(ta.crossover(s5, 0), "Bullish Trend Time Frame 5")
alertcondition(ta.crossunder(s5, 0), "Bearish Trend Time Frame 5")
alertcondition(ta.cross(s5, 0), "(Bullish or Bearish) Trend Time Frame 5")

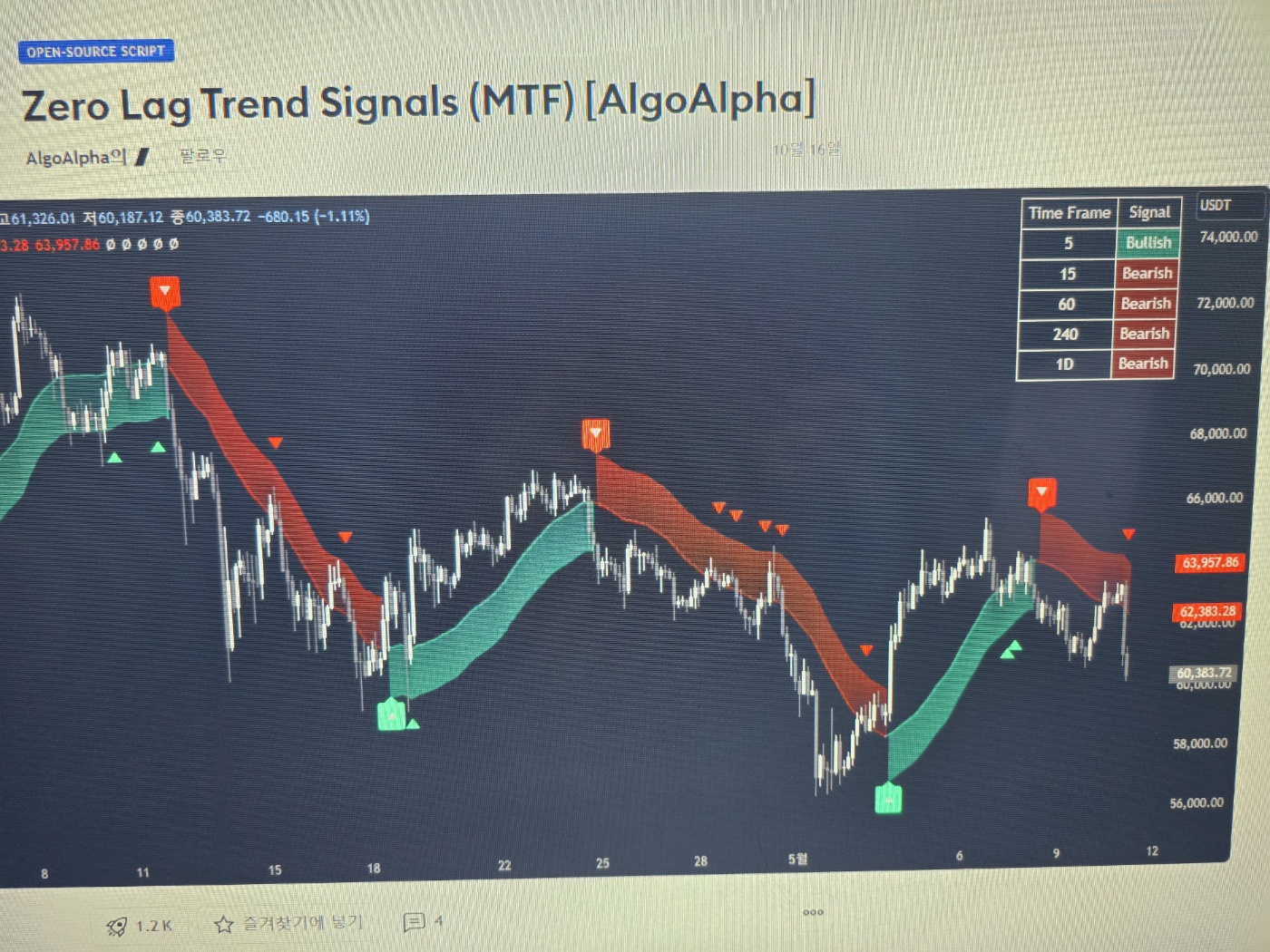

- 1. KakaoTalk_20241114_013236065.jpg (0.62 MB)
답변 1
예스스탁 예스스탁 답변
2024-11-14 14:59:15
안녕하세요
예스스탁입니다.
타주기 내용은 제외하고 작성해 드립니다.
input : length(70);
input : mult(1.2);
var : src(0),lag(0),zlema(0),volatility(0),trend(0),zlemaColor(0),tx(0);
src = close;
lag = floor((length - 1) / 2);
zlema = ema(src + (src - src[lag]), length);
volatility = highest(atr(length), length*3) * mult;
if CrossUp(close, zlema+volatility) Then
trend = 1;
if CrossDown(close, zlema-volatility) Then
trend = -1;
zlemaColor = iff(trend == 1 , green, red);
plot1(zlema, "Zero Lag Basis",zlemaColor);
if trend == -1 Then
plot2(zlema+volatility ,"Deviation Band",red);
Else
plot2(zlema-volatility , "Deviation Band",Green);
if trend == -1 and trend[1] != -1 Then
{
tx = Text_New(sDate,sTime,zlema+volatility,"▼");
Text_SetColor(tx,Red);
Text_SetStyle(tx,2,1);
}
if trend == 1 and trend[1] != 1 Then
{
tx = Text_New(sDate,sTime,zlema-volatility ,"▲");
Text_SetColor(tx,Green);
Text_SetStyle(tx,2,0);
}
즐거운 하루되세요
