추세 박스
2024-02-14 22:43:48
719
글번호 176629
첨부 이미지
그림1
1번수식.
input : Period(250);
Var:TL(0),j(0),T(0),tx(0) ,box(0);
Var: date11(0),date12(0),time11(0),time12(0),
date21(0),date22(0),time21(0),time22(0),
date31(0),date32(0),time31(0),time32(0);
Array: HiVal[20](0),LoVal[20](0),HiBar[20](0),LoBar[20](0);
var : tx98count(0), tx99count(0);
Plot1(value12,"value12",IFf(t==1,Red,Blue));
For j = 0 To 19
{
HiBar[j] = HiBar[j] + 1;
LoBar[j] = LoBar[j] + 1;
}
if crossup(c,highest(H,Period)[1]) Then
T = 1;
if CrossDown(c,Lowest(L,Period)[1]) Then
T = -1;
If T == -1 Then
{
If T[1] != -1 Then
{
For j = 18 DownTo 0
{
LoVal[j+1] = LoVal[j];
LoBar[j+1] = LoBar[j];
}
LoVal[0] = L;
LoBar[0] = 0;
date11 = date[HiBar[0]];
time11 = stime[HiBar[0]];
Value11 = HiVal[0];
date12 = date[LoBar[0]];
time12 = stime[LoBar[0]];
Value12 = LoVal[0];
date21 = date[HiBar[0]];
time21 = stime[HiBar[0]];
date22 = date[0];
time22 = stime[0];
box = Box_New_Self(date11,time11,Value11,date12,time12,Value12);
Condition99 = False;
tx99count = 0;
}
Else
{
If LoVal[0] > L Then
{
LoVal[0] = L;
LoBar[0] = 0;
date12 = date[LoBar[0]];
time12 = stime[LoBar[0]];
Value12 = LoVal[0];
date22 = date[0];
time22 = stime[0];
Box_SetEnd(box,date12,time12,Value12);
{
}
if value12 > value11-0.7 Then
{
Box_SetColor(box,Cyan);
Box_SetFill(box,true,50);
}
else if value12 <= value11-0.7 and value12 > value11-0.9 Then
{
Box_SetColor(box,Yellow);
Box_SetFill(box,true,70);
}
else if value12 <= value11-0.9 and value12 > value11-1.3 Then
{
Box_SetColor(box,Lime);
Box_SetFill(box,true,60);
}
else if value12 <= value11-1.3 and value12 > value11-1.6 Then
{
Box_SetColor(box,Cyan);
Box_SetFill(box,true,40);
}
else if value12 <= value11-1.6 and value12 > value11-2 Then
{
Box_SetColor(box,Blue);
Box_SetFill(box,true,20);
}
else
{
Box_SetColor(box,Yellow);
Box_SetFill(box,true,50);
}
Condition99 = False;
}
Else
{
if Condition99 == False and value12 <= value11-0.9 and H >= value12+PriceScale*3 Then
{
Condition99 = true;
tx99count = tx99count+1;
if tx99count >= 1 Then
{
TL= TL_New_Self(sDate,sTime,H+0.15,sDate,sTime,999);
TL_SetColor(TL,Magenta);
TL_SetSize(TL,1);
}
}
}
}
}
If T == 1 Then
{
If T[1] != 1 Then
{
For j = 18 DownTo 0
{
HiVal[j+1] = HiVal[j];
HiBar[j+1] = HiBar[j];
}
HiVal[0] = H;
HiBar[0] = 0;
date11 = date[LoBar[0]];
time11 = stime[LoBar[0]];
Value11 = LoVal[0];
date12 = date[HiBar[0]];
time12 = stime[HiBar[0]];
Value12 = HiVal[0];
date31 = date[LoBar[0]];
time31 = stime[LoBar[0]];
date32 = date[0];
time32 = stime[0];
box = Box_New_Self(date11,time11,Value11,date12,time12,Value12);
Condition98 = False;
tx98count = 0;
}
If HiVal[0] < H Then
{
HiVal[0] = H;
HiBar[0] = 0;
date12 = date[HiBar[0]];
time12 = stime[HiBar[0]];
Value12 = HiVal[0];
date32 = date[0];
time32 = stime[0];
Box_SetEnd(box,date12,time12,Value12);
{
}
if Value12 >= value11+1.3 Then
{
Box_SetColor(box,Pink);
Box_SetFill(box,true,70);
}
else if value12 >= value11+0.8 and value12 < value11+1.3 Then
{
Box_SetColor(box,Magenta);
Box_SetFill(box,true,30);
}
Else
{
Box_SetColor(box,Orange);
Box_SetFill(box,true,60);
}
Condition98 = False;
}
Else
{
if Condition98 == False and value12 >= value11+0.9 and L <= value12-PriceScale*3 Then
{
Condition98 = true;
tx98count = tx98count+1;
if tx98count >= 1 Then
{
TL= TL_New_Self(sDate,sTime,H-0.15,sDate,sTime,-999);
TL_SetColor(TL,Blue);
TL_SetSize(TL,1);
}
}
}
}
2번수식.
input : Period(250);
Var:TL(0),j(0),T(0),tx(0) ,box(0);
Var: date11(0),date12(0),time11(0),time12(0),
date21(0),date22(0),time21(0),time22(0),
date31(0),date32(0),time31(0),time32(0);
Array: HiVal[20](0),LoVal[20](0),HiBar[20](0),LoBar[20](0);
var : tx98count(0), tx99count(0);
Plot1(value12,"value12",IFf(t==1,Red,Blue));
For j = 0 To 19
{
HiBar[j] = HiBar[j] + 1;
LoBar[j] = LoBar[j] + 1;
}
if crossup(c,highest(H,Period)[1]) Then
T = 1;
if CrossDown(c,Lowest(L,Period)[1]) Then
T = -1;
If T == -1 Then
{
If T[1] != -1 Then
{
For j = 18 DownTo 0
{
LoVal[j+1] = LoVal[j];
LoBar[j+1] = LoBar[j];
}
LoVal[0] = L;
LoBar[0] = 0;
date11 = date[HiBar[0]];
time11 = stime[HiBar[0]];
Value11 = HiVal[0];
date12 = date[LoBar[0]];
time12 = stime[LoBar[0]];
Value12 = LoVal[0];
date21 = date[HiBar[0]];
time21 = stime[HiBar[0]];
date22 = date[0];
time22 = stime[0];
box = Box_New(date11,time11,Value11,date12,time12,Value12);
}
If LoVal[0] > L Then
{
LoVal[0] = L;
LoBar[0] = 0;
date12 = date[LoBar[0]];
time12 = stime[LoBar[0]];
Value12 = LoVal[0];
date22 = date[0];
time22 = stime[0];
Box_SetEnd(box,date12,time12,Value12);
}
if value12 > value11-0.7 Then
{
Box_SetColor(box,Cyan);
Box_SetFill(box,true,50);
}
else if value12 <= value11-0.7 and value12 > value11-0.9 Then
{
Box_SetColor(box,Yellow);
Box_SetFill(box,true,70);
}
else if value12 <= value11-0.9 and value12 > value11-1.3 Then
{
Box_SetColor(box,Lime);
Box_SetFill(box,true,60);
}
else if value12 <= value11-1.3 and value12 > value11-1.6 Then
{
Box_SetColor(box,Cyan);
Box_SetFill(box,true,40);
}
else if value12 <= value11-1.6 and value12 > value11-2 Then
{
Box_SetColor(box,Blue);
Box_SetFill(box,true,20);
}
else
{
Box_SetColor(box,Yellow);
Box_SetFill(box,true,50);
}
}
If T == 1 Then
{
If T[1] != 1 Then
{
For j = 18 DownTo 0
{
HiVal[j+1] = HiVal[j];
HiBar[j+1] = HiBar[j];
}
HiVal[0] = H;
HiBar[0] = 0;
date11 = date[LoBar[0]];
time11 = stime[LoBar[0]];
Value11 = LoVal[0];
date12 = date[HiBar[0]];
time12 = stime[HiBar[0]];
Value12 = HiVal[0];
date31 = date[LoBar[0]];
time31 = stime[LoBar[0]];
date32 = date[0];
time32 = stime[0];
box = Box_New(date11,time11,Value11,date12,time12,Value12);
}
If HiVal[0] < H Then
{
HiVal[0] = H;
HiBar[0] = 0;
date12 = date[HiBar[0]];
time12 = stime[HiBar[0]];
Value12 = HiVal[0];
date32 = date[0];
time32 = stime[0];
Box_SetEnd(box,date12,time12,Value12);
}
if Value12 >= value11+1.3 Then
{
Box_SetColor(box,Pink);
Box_SetFill(box,true,70);
}
else if value12 >= value11+0.8 and value12 < value11+1.3 Then
{
Box_SetColor(box,Magenta);
Box_SetFill(box,true,30);
}
Else
{
Box_SetColor(box,Orange);
Box_SetFill(box,true,60);
}
}

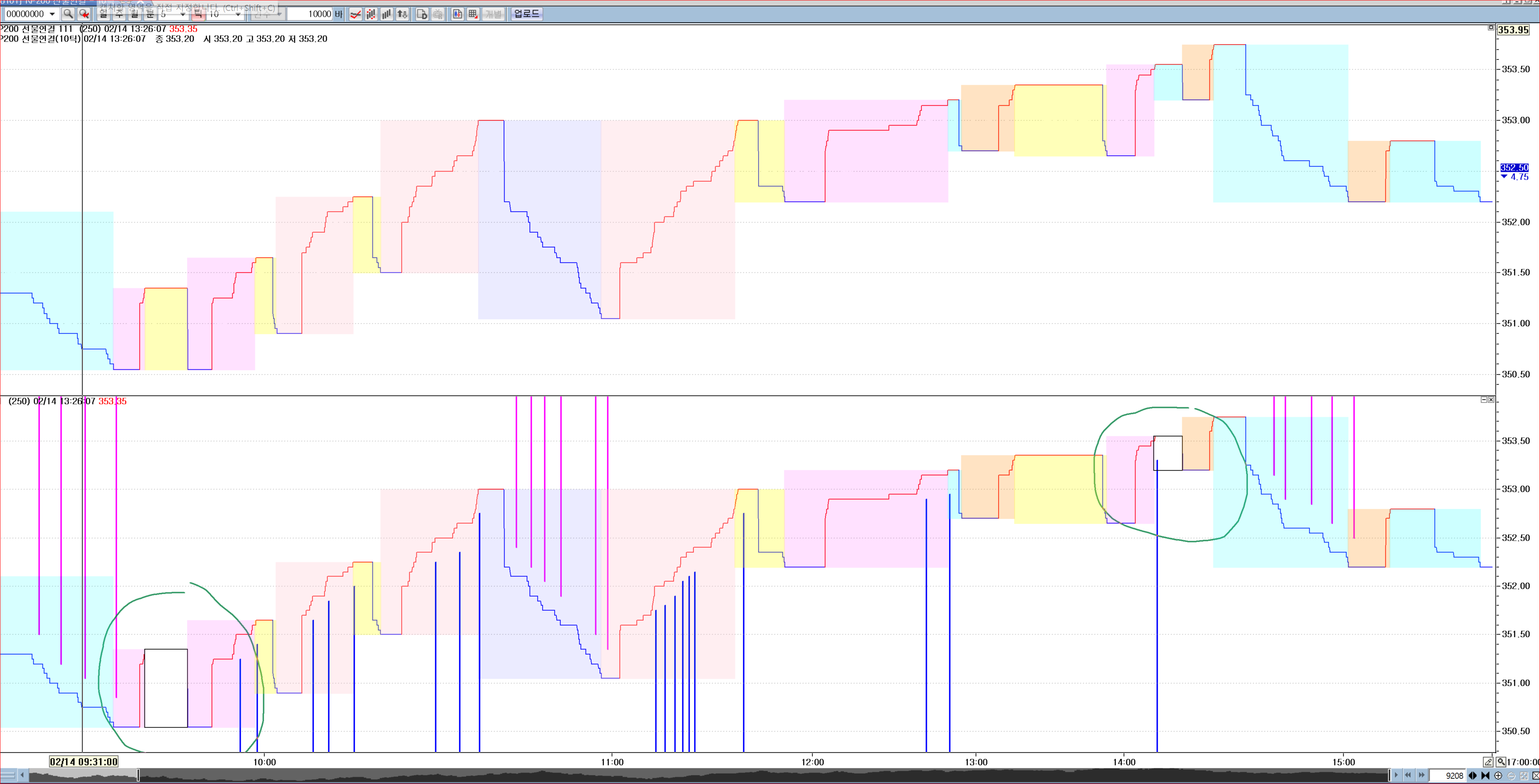

윗 그림은 박스만 있는 2번 수식이고, 정상입니다.
아래 그림은 그 박스 수식에, 3틱 변동시 세로선 추가하면 오류 나오는 1번 수식입니다.
선물 10틱 차트에서, 1번 수식 박스 세로선 모두 구현되게 수정 부탁드립니다.
다른 수식에서도 분봉은 정상이나 틱차트에서 오류 나올 때가 가끔 있습니다.
정상 박스는 처음부터 테두리가 없는데, 오류가 생길 때는 네모 테두리가 생겼다가 정상으로 되기도하나 그대로 테두리만 끝까지 존재합니다.
- 1. 20240214_185329.png (0.22 MB)
답변 1
예스스탁 예스스탁 답변
2024-02-15 11:05:56
안녕하세요
예스스탁입니다.
input : Period(250);
Var:TL(0),j(0),T(0),tx(0) ,box(0);
Var: date11(0),date12(0),time11(0),time12(0),
date21(0),date22(0),time21(0),time22(0),
date31(0),date32(0),time31(0),time32(0);
Array: HiVal[20](0),LoVal[20](0),HiBar[20](0),LoBar[20](0);
var : tx98count(0), tx99count(0);
Plot1(value12,"value12",IFf(t==1,Red,Blue));
For j = 0 To 19
{
HiBar[j] = HiBar[j] + 1;
LoBar[j] = LoBar[j] + 1;
}
if crossup(c,highest(H,Period)[1]) Then
T = 1;
if CrossDown(c,Lowest(L,Period)[1]) Then
T = -1;
If T == -1 Then
{
If T[1] != -1 Then
{
For j = 18 DownTo 0
{
LoVal[j+1] = LoVal[j];
LoBar[j+1] = LoBar[j];
}
LoVal[0] = L;
LoBar[0] = 0;
date11 = date[HiBar[0]];
time11 = stime[HiBar[0]];
Value11 = HiVal[0];
date12 = date[LoBar[0]];
time12 = stime[LoBar[0]];
Value12 = LoVal[0];
date21 = date[HiBar[0]];
time21 = stime[HiBar[0]];
date22 = date[0];
time22 = stime[0];
box = Box_New_Self(date11,time11,Value11,date12,time12,Value12);
Condition99 = False;
tx99count = 0;
}
If LoVal[0] > L Then
{
LoVal[0] = L;
LoBar[0] = 0;
date12 = date[LoBar[0]];
time12 = stime[LoBar[0]];
Value12 = LoVal[0];
date22 = date[0];
time22 = stime[0];
Box_SetEnd(box,date12,time12,Value12);
Condition99 = False;
}
if value12 > value11-0.7 Then
{
Box_SetColor(box,Cyan);
Box_SetFill(box,true,50);
}
else if value12 <= value11-0.7 and value12 > value11-0.9 Then
{
Box_SetColor(box,Yellow);
Box_SetFill(box,true,70);
}
else if value12 <= value11-0.9 and value12 > value11-1.3 Then
{
Box_SetColor(box,Lime);
Box_SetFill(box,true,60);
}
else if value12 <= value11-1.3 and value12 > value11-1.6 Then
{
Box_SetColor(box,Cyan);
Box_SetFill(box,true,40);
}
else if value12 <= value11-1.6 and value12 > value11-2 Then
{
Box_SetColor(box,Blue);
Box_SetFill(box,true,20);
}
else
{
Box_SetColor(box,Yellow);
Box_SetFill(box,true,50);
}
if Condition99 == False and value12 <= value11-0.9 and H >= value12+PriceScale*3 Then
{
Condition99 = true;
tx99count = tx99count+1;
if tx99count >= 1 Then
{
TL= TL_New_Self(sDate,sTime,H+0.15,sDate,sTime,999);
TL_SetColor(TL,Magenta);
TL_SetSize(TL,1);
}
}
}
If T == 1 Then
{
If T[1] != 1 Then
{
For j = 18 DownTo 0
{
HiVal[j+1] = HiVal[j];
HiBar[j+1] = HiBar[j];
}
HiVal[0] = H;
HiBar[0] = 0;
date11 = date[LoBar[0]];
time11 = stime[LoBar[0]];
Value11 = LoVal[0];
date12 = date[HiBar[0]];
time12 = stime[HiBar[0]];
Value12 = HiVal[0];
date31 = date[LoBar[0]];
time31 = stime[LoBar[0]];
date32 = date[0];
time32 = stime[0];
box = Box_New_Self(date11,time11,Value11,date12,time12,Value12);
Condition98 = False;
tx98count = 0;
}
If HiVal[0] < H Then
{
HiVal[0] = H;
HiBar[0] = 0;
date12 = date[HiBar[0]];
time12 = stime[HiBar[0]];
Value12 = HiVal[0];
date32 = date[0];
time32 = stime[0];
Box_SetEnd(box,date12,time12,Value12);
Condition98 = False;
}
if Value12 >= value11+1.3 Then
{
Box_SetColor(box,Pink);
Box_SetFill(box,true,70);
}
else if value12 >= value11+0.8 and value12 < value11+1.3 Then
{
Box_SetColor(box,Magenta);
Box_SetFill(box,true,30);
}
Else
{
Box_SetColor(box,Orange);
Box_SetFill(box,true,60);
}
if Condition98 == False and value12 >= value11+0.9 and L <= value12-PriceScale*3 Then
{
Condition98 = true;
tx98count = tx98count+1;
if tx98count >= 1 Then
{
TL= TL_New_Self(sDate,sTime,H-0.15,sDate,sTime,-999);
TL_SetColor(TL,Blue);
TL_SetSize(TL,1);
}
}
}
즐거운 하루되세요
> 고성 님이 쓴 글입니다.
> 제목 : 추세 박스
> 1번수식.
input : Period(250);
Var:TL(0),j(0),T(0),tx(0) ,box(0);
Var: date11(0),date12(0),time11(0),time12(0),
date21(0),date22(0),time21(0),time22(0),
date31(0),date32(0),time31(0),time32(0);
Array: HiVal[20](0),LoVal[20](0),HiBar[20](0),LoBar[20](0);
var : tx98count(0), tx99count(0);
Plot1(value12,"value12",IFf(t==1,Red,Blue));
For j = 0 To 19
{
HiBar[j] = HiBar[j] + 1;
LoBar[j] = LoBar[j] + 1;
}
if crossup(c,highest(H,Period)[1]) Then
T = 1;
if CrossDown(c,Lowest(L,Period)[1]) Then
T = -1;
If T == -1 Then
{
If T[1] != -1 Then
{
For j = 18 DownTo 0
{
LoVal[j+1] = LoVal[j];
LoBar[j+1] = LoBar[j];
}
LoVal[0] = L;
LoBar[0] = 0;
date11 = date[HiBar[0]];
time11 = stime[HiBar[0]];
Value11 = HiVal[0];
date12 = date[LoBar[0]];
time12 = stime[LoBar[0]];
Value12 = LoVal[0];
date21 = date[HiBar[0]];
time21 = stime[HiBar[0]];
date22 = date[0];
time22 = stime[0];
box = Box_New_Self(date11,time11,Value11,date12,time12,Value12);
Condition99 = False;
tx99count = 0;
}
Else
{
If LoVal[0] > L Then
{
LoVal[0] = L;
LoBar[0] = 0;
date12 = date[LoBar[0]];
time12 = stime[LoBar[0]];
Value12 = LoVal[0];
date22 = date[0];
time22 = stime[0];
Box_SetEnd(box,date12,time12,Value12);
{
}
if value12 > value11-0.7 Then
{
Box_SetColor(box,Cyan);
Box_SetFill(box,true,50);
}
else if value12 <= value11-0.7 and value12 > value11-0.9 Then
{
Box_SetColor(box,Yellow);
Box_SetFill(box,true,70);
}
else if value12 <= value11-0.9 and value12 > value11-1.3 Then
{
Box_SetColor(box,Lime);
Box_SetFill(box,true,60);
}
else if value12 <= value11-1.3 and value12 > value11-1.6 Then
{
Box_SetColor(box,Cyan);
Box_SetFill(box,true,40);
}
else if value12 <= value11-1.6 and value12 > value11-2 Then
{
Box_SetColor(box,Blue);
Box_SetFill(box,true,20);
}
else
{
Box_SetColor(box,Yellow);
Box_SetFill(box,true,50);
}
Condition99 = False;
}
Else
{
if Condition99 == False and value12 <= value11-0.9 and H >= value12+PriceScale*3 Then
{
Condition99 = true;
tx99count = tx99count+1;
if tx99count >= 1 Then
{
TL= TL_New_Self(sDate,sTime,H+0.15,sDate,sTime,999);
TL_SetColor(TL,Magenta);
TL_SetSize(TL,1);
}
}
}
}
}
If T == 1 Then
{
If T[1] != 1 Then
{
For j = 18 DownTo 0
{
HiVal[j+1] = HiVal[j];
HiBar[j+1] = HiBar[j];
}
HiVal[0] = H;
HiBar[0] = 0;
date11 = date[LoBar[0]];
time11 = stime[LoBar[0]];
Value11 = LoVal[0];
date12 = date[HiBar[0]];
time12 = stime[HiBar[0]];
Value12 = HiVal[0];
date31 = date[LoBar[0]];
time31 = stime[LoBar[0]];
date32 = date[0];
time32 = stime[0];
box = Box_New_Self(date11,time11,Value11,date12,time12,Value12);
Condition98 = False;
tx98count = 0;
}
If HiVal[0] < H Then
{
HiVal[0] = H;
HiBar[0] = 0;
date12 = date[HiBar[0]];
time12 = stime[HiBar[0]];
Value12 = HiVal[0];
date32 = date[0];
time32 = stime[0];
Box_SetEnd(box,date12,time12,Value12);
{
}
if Value12 >= value11+1.3 Then
{
Box_SetColor(box,Pink);
Box_SetFill(box,true,70);
}
else if value12 >= value11+0.8 and value12 < value11+1.3 Then
{
Box_SetColor(box,Magenta);
Box_SetFill(box,true,30);
}
Else
{
Box_SetColor(box,Orange);
Box_SetFill(box,true,60);
}
Condition98 = False;
}
Else
{
if Condition98 == False and value12 >= value11+0.9 and L <= value12-PriceScale*3 Then
{
Condition98 = true;
tx98count = tx98count+1;
if tx98count >= 1 Then
{
TL= TL_New_Self(sDate,sTime,H-0.15,sDate,sTime,-999);
TL_SetColor(TL,Blue);
TL_SetSize(TL,1);
}
}
}
}
2번수식.
input : Period(250);
Var:TL(0),j(0),T(0),tx(0) ,box(0);
Var: date11(0),date12(0),time11(0),time12(0),
date21(0),date22(0),time21(0),time22(0),
date31(0),date32(0),time31(0),time32(0);
Array: HiVal[20](0),LoVal[20](0),HiBar[20](0),LoBar[20](0);
var : tx98count(0), tx99count(0);
Plot1(value12,"value12",IFf(t==1,Red,Blue));
For j = 0 To 19
{
HiBar[j] = HiBar[j] + 1;
LoBar[j] = LoBar[j] + 1;
}
if crossup(c,highest(H,Period)[1]) Then
T = 1;
if CrossDown(c,Lowest(L,Period)[1]) Then
T = -1;
If T == -1 Then
{
If T[1] != -1 Then
{
For j = 18 DownTo 0
{
LoVal[j+1] = LoVal[j];
LoBar[j+1] = LoBar[j];
}
LoVal[0] = L;
LoBar[0] = 0;
date11 = date[HiBar[0]];
time11 = stime[HiBar[0]];
Value11 = HiVal[0];
date12 = date[LoBar[0]];
time12 = stime[LoBar[0]];
Value12 = LoVal[0];
date21 = date[HiBar[0]];
time21 = stime[HiBar[0]];
date22 = date[0];
time22 = stime[0];
box = Box_New(date11,time11,Value11,date12,time12,Value12);
}
If LoVal[0] > L Then
{
LoVal[0] = L;
LoBar[0] = 0;
date12 = date[LoBar[0]];
time12 = stime[LoBar[0]];
Value12 = LoVal[0];
date22 = date[0];
time22 = stime[0];
Box_SetEnd(box,date12,time12,Value12);
}
if value12 > value11-0.7 Then
{
Box_SetColor(box,Cyan);
Box_SetFill(box,true,50);
}
else if value12 <= value11-0.7 and value12 > value11-0.9 Then
{
Box_SetColor(box,Yellow);
Box_SetFill(box,true,70);
}
else if value12 <= value11-0.9 and value12 > value11-1.3 Then
{
Box_SetColor(box,Lime);
Box_SetFill(box,true,60);
}
else if value12 <= value11-1.3 and value12 > value11-1.6 Then
{
Box_SetColor(box,Cyan);
Box_SetFill(box,true,40);
}
else if value12 <= value11-1.6 and value12 > value11-2 Then
{
Box_SetColor(box,Blue);
Box_SetFill(box,true,20);
}
else
{
Box_SetColor(box,Yellow);
Box_SetFill(box,true,50);
}
}
If T == 1 Then
{
If T[1] != 1 Then
{
For j = 18 DownTo 0
{
HiVal[j+1] = HiVal[j];
HiBar[j+1] = HiBar[j];
}
HiVal[0] = H;
HiBar[0] = 0;
date11 = date[LoBar[0]];
time11 = stime[LoBar[0]];
Value11 = LoVal[0];
date12 = date[HiBar[0]];
time12 = stime[HiBar[0]];
Value12 = HiVal[0];
date31 = date[LoBar[0]];
time31 = stime[LoBar[0]];
date32 = date[0];
time32 = stime[0];
box = Box_New(date11,time11,Value11,date12,time12,Value12);
}
If HiVal[0] < H Then
{
HiVal[0] = H;
HiBar[0] = 0;
date12 = date[HiBar[0]];
time12 = stime[HiBar[0]];
Value12 = HiVal[0];
date32 = date[0];
time32 = stime[0];
Box_SetEnd(box,date12,time12,Value12);
}
if Value12 >= value11+1.3 Then
{
Box_SetColor(box,Pink);
Box_SetFill(box,true,70);
}
else if value12 >= value11+0.8 and value12 < value11+1.3 Then
{
Box_SetColor(box,Magenta);
Box_SetFill(box,true,30);
}
Else
{
Box_SetColor(box,Orange);
Box_SetFill(box,true,60);
}
}
윗 그림은 박스만 있는 2번 수식이고, 정상입니다.
아래 그림은 그 박스 수식에, 3틱 변동시 세로선 추가하면 오류 나오는 1번 수식입니다.
선물 10틱 차트에서, 1번 수식 박스 세로선 모두 구현되게 수정 부탁드립니다.
다른 수식에서도 분봉은 정상이나 틱차트에서 오류 나올 때가 가끔 있습니다.
정상 박스는 처음부터 테두리가 없는데, 오류가 생길 때는 네모 테두리가 생겼다가 정상으로 되기도하나 그대로 테두리만 끝까지 존재합니다.
다음글
이전글
